ACL Climate is a specialist automotive air-conditioning equipment company, based in the heart of Shropshire.

Bosch Equipment

The air conditioning systems in vehicles need to be serviced regularly. Our ACS units with up to 99% recovery rate are the new standard in R1234yf and R134a A/C service. These two models operate with cars and commercial vehicles fully automatically. They are also compatible with hybrid and electric vehicles.

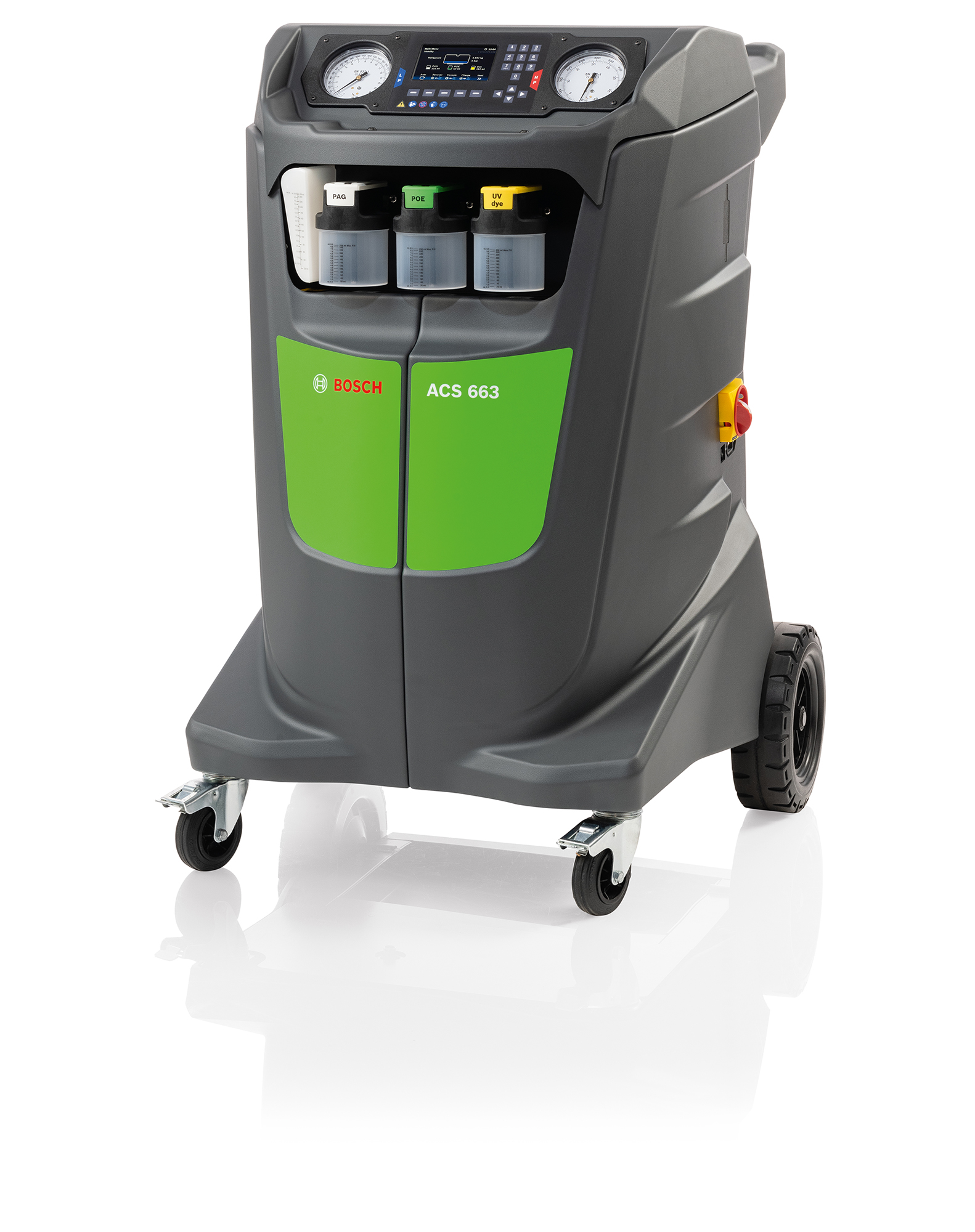

ACS 663-P

Meeting the technically demanding European standards, the ACS 653-P’s high precision measuring technology and fully-automatic service enables efficient service work on the A/C systems of cars and commercial vehicles.

The unit’s maintenance-friendly design allows fast and easy access to all the internal parts, saving time increasing workshop efficiency.

Two oil bottles for PAG and POE lubricants along with an automatic flushing function make the unit compatible with hybrid and electric vehicles too.

Blank

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Key Features
  • Maintenance-friendly design: For easy and efficient access to the internal components of the A/C service unit
  • Deep Recovery function with 99% of the refrigerant able to be recovered within minutes: Cutting time and costs while protecting the environment
  • Innovative oil bottle system: For servicing vehicles with combustion engines and hybrid vehicles (PAG/POE)
  • Designed with user-experience in mind: For the perfect combination of robustness and flexible mobile use
  • Bosch Connected Repair compatible
  • Integrated printer ACS653-P
Technical data
RefrigerantR1234yf
Operating modeFully-automatic
Recovery functionAutomatic
Recovery rate> 99%
Refrigerant detectionOptional
(integrated in ACS 663-RI)
Oil drainAutomatic, with electronic scale
Vacuum functionAutomatic
Leak testAutomatic
Pressure leak testYes
Pressure leak test (N2 / N2H2)Optional
Hybrid oil functionYes
Oil injectionPAG/POE
Automatic
UV dye injectionAutomatic
Refrigerant volumeAutomatic, with electronic scale
Flushing functionOptional
PrinterACS 663-P
ACS 663-RI
Ventilation systemElectronic control
Valves, HP/LP–
Pressure gage, HP/LP100 mm, pulse-free
Tank pressure displayDigital
Service hoses2,5 m (5 m optional)
Display4.3" color display
Compressor1/4 HD
Vacuum pump170 l/min. (6 CFM)
Refrigerant tank19.5 kg/21.5 kg
Oil bottles2 x 250 ml
(hermetically-sealed as an option)
Dimensions in cm (L x W x H)105 x 75 x 77
Weight112 kg
(with empty refrigerant tank)
Vehicle databaseYes
Programmable user databaseYes
A/C system performance testYes
Vehicle flushing adapter kitOptional kit
USB portYes
Wi-Fi connectionOptional
App connectionOptional

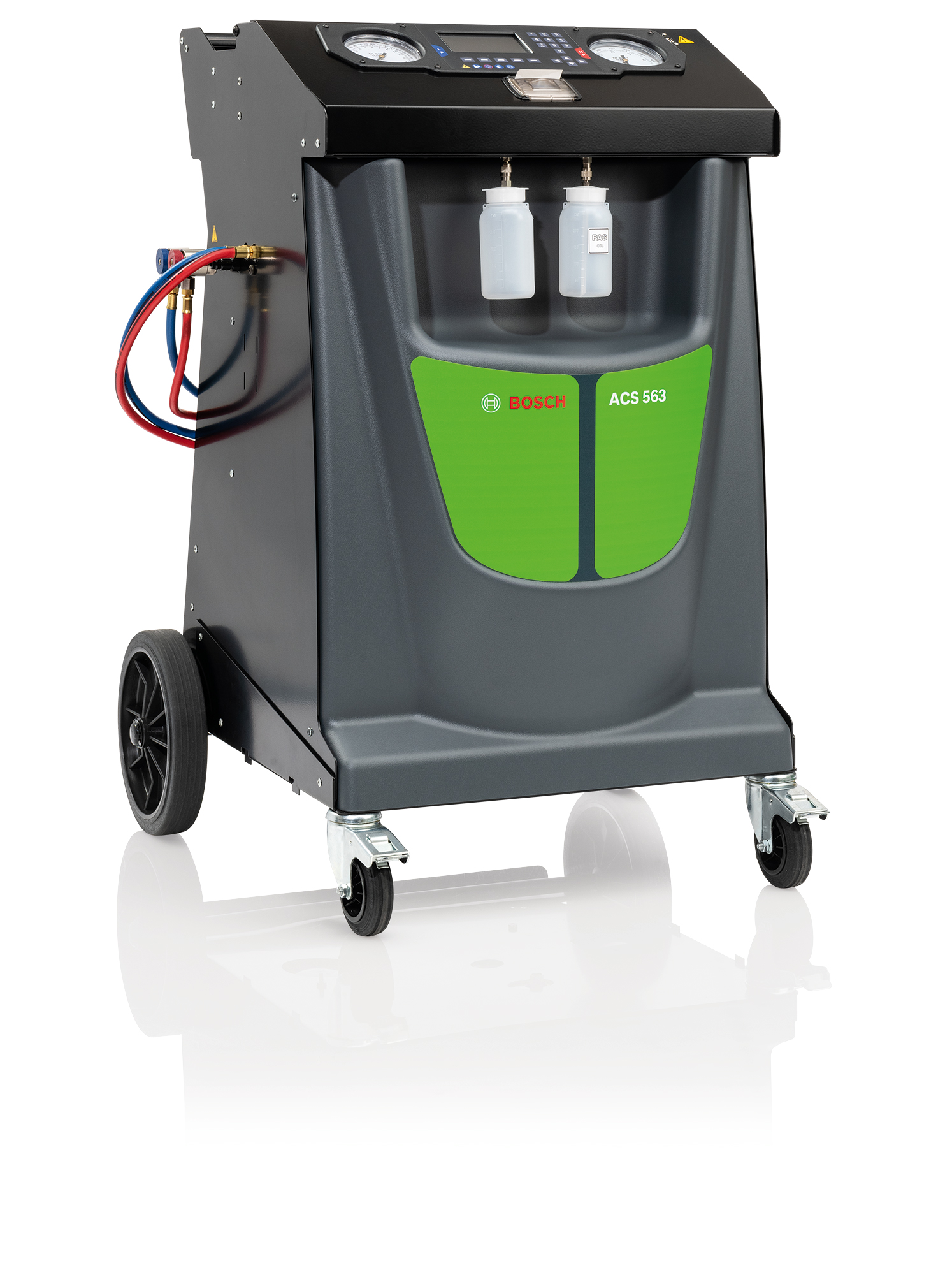

ACS 563

The ACS 563 air conditioning unit for vehicles with R1234yf refrigerant performs essential refrigerant recovery, recycling and recharge service and maintenance tasks with accuracy and ease.

Designed and developed specifically to be one of the most competitively priced units within our range, the ACS 563 is also fully automatic and maintenance-friendly, to save time and increase workshop efficiency.

Further options that can be added include Flushing Kits and the Wifi Connection kit.

Blank

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Key Features
  • Settings for a fully automated service or individual processes: For time and cost savings
  • Recovery performance rate up to 95%: For effectiveness and sustainability
  • Electronic control of internal air exchanges: For safety and to reduce the risk of high pressure
  • Hose flushing function: For flexibility to service vehicles with combustion engines, as well as hybrid and electric vehicles (PAG/POE)
  • Clear and intuitive interface on colour display with 100mm-wide gauges: For complete ease of use
  • Maintenance-friendly design: For easy and efficient access to the internal components of the A/C service unit
  • Broad and exceptional range of accessories: For a tailor-made solution to meet the workshop’s specific needs
Technical data
RefrigerantR1234yf
Operating modeFully-automatic
Recovery functionAutomatic
Recovery rate> 99%
Refrigerant detectionOptional
(integrated in ACS 663-RI)
Oil drainAutomatic, with electronic scale
Vacuum functionAutomatic
Leak testAutomatic
Pressure leak testYes
Pressure leak test (N2 / N2H2)Optional
Hybrid oil functionYes
Oil injectionPAG/POE
Automatic
UV dye injectionAutomatic
Refrigerant volumeAutomatic, with electronic scale
Flushing functionOptional
PrinterACS 663-P
ACS 663-RI
Ventilation systemElectronic control
Valves, HP/LP–
Pressure gage, HP/LP100 mm, pulse-free
Tank pressure displayDigital
Service hoses2,5 m (5 m optional)
Display4.3" color display
Compressor1/4 HD
Vacuum pump170 l/min. (6 CFM)
Refrigerant tank19.5 kg/21.5 kg
Oil bottles2 x 250 ml
(hermetically-sealed as an option)
Dimensions in cm (L x W x H)105 x 75 x 77
Weight112 kg
(with empty refrigerant tank)
Vehicle databaseYes
Programmable user databaseYes
A/C system performance testYes
Vehicle flushing adapter kitOptional kit
USB portYes
Wi-Fi connectionOptional
App connectionOptional
