Waeco Equipment

Modern design in all-black. Fully automatic service processes. Smart 7-series extras for convenient handling. This new generation air conditioning service unit was designed for use on cars and trucks. Certified for four refrigerants, it can be equipped for service on R134a, R1234yf, R456A or R513A A/C systems. Simply order the hose kit for the application of your choice.

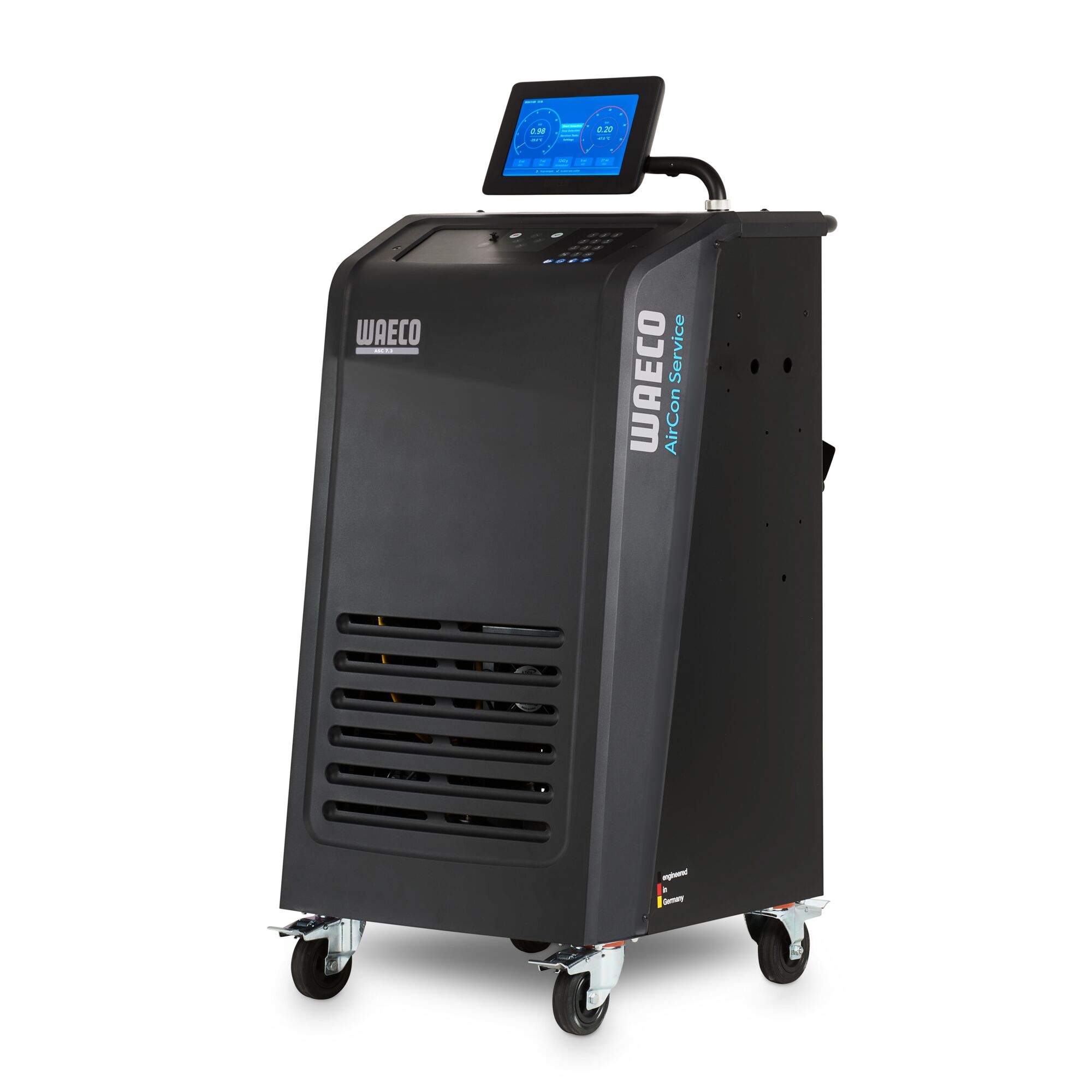

Waeco ASC 7.3

Air conditioning service unit, 16 kg, certified for 4 refrigerants

Modern design in all-black. Fully automatic service processes. Smart 7-series extras for convenient handling. This new generation air conditioning service unit was designed for use on cars and trucks. Certified for four refrigerants, it can be equipped for service on R134a, R1234yf, R456A or R513A A/C systems. Simply order the hose kit for the application of your choice.

Blank

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Key Features
  • Fully automatic A/C service – saves time and effort in the workshop

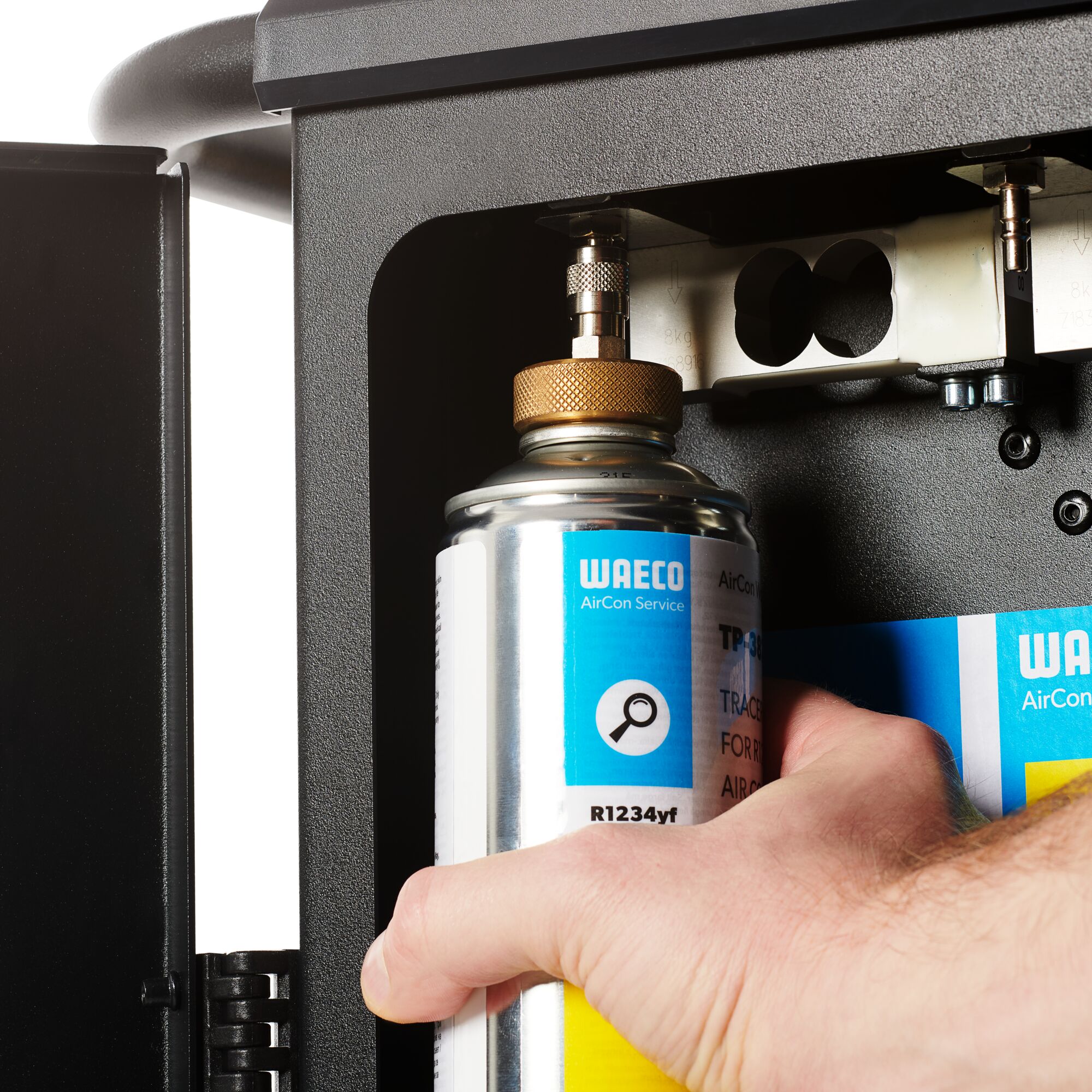

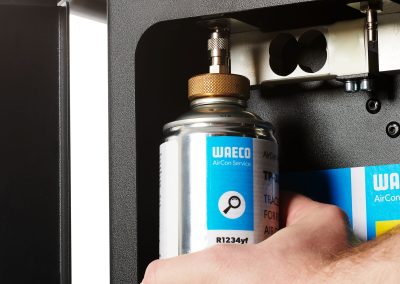

  • Humidity-free storage and feeding system for fresh oil and UV additive (hose kit sold separately)
  • Optional external gas analyser prevents dangerous refrigerant mixtures
  • Integrated refrigerant charging and recovery amount management
  • Maintenance-free refrigerant weighing platform – no calibration required
  • Database with personalised charging amount for 100 different vehicles
  • Prepared for installation of an optional forming gas/nitrogen leak detection module
  • WiFi-ready – integrated module can be activated during initial start-up
  • USB interface for convenient software update or export of service data
  • Complies with SAE J 2099, 2788 and 2843
Technical data

GeneralSKU number 9103303116
For Refrigerant R456A, R1234yf, R134a, R513A
Input voltage (AC) 220-240 V
Input frequency 50/60 Hz
Recovery / recyclingPurity of recovered refrigerant (SAE J 2099) Yes
Refrigerant recovery rate 30.00 kg/h
Vacuum pump capacity 5 cars/h
Performance of the hermetic compressor 0.32 kW
Dry filter capacity 150.00 kg
Refrigerant recycling rate Min. 95 %
Can be used as diagnosis tool No
ProcessesRefrigerant analysis External / Optional
Recovery/recycling Automatic
Purging of non-condensable gases Automatic
Purging of used oil Automatic
Evacuation Automatic
Vacuum check Automatic
Injection of leak detection additive Automatic
Injection of oil into the A/C system Automatic
Refrigerant charging Automatic

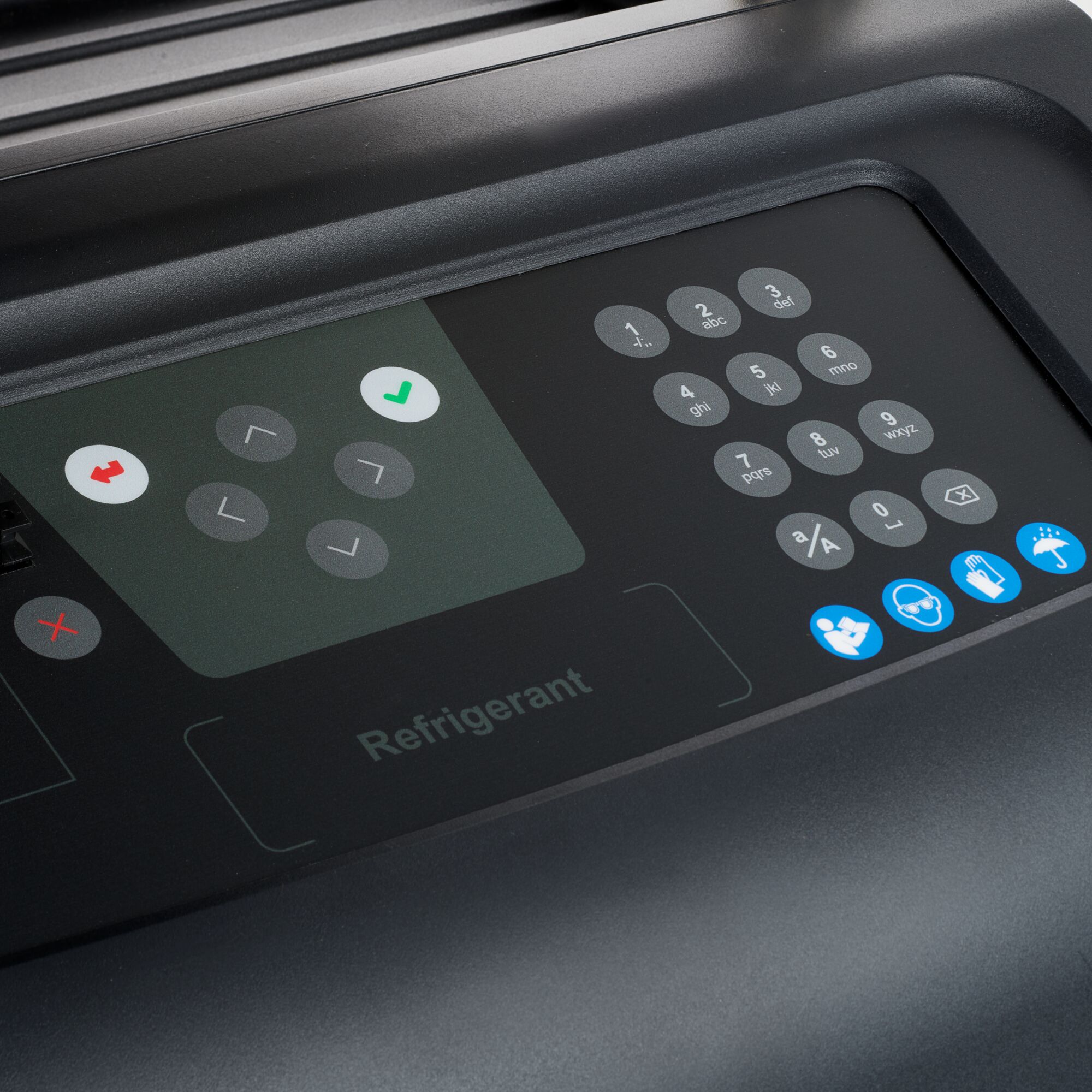

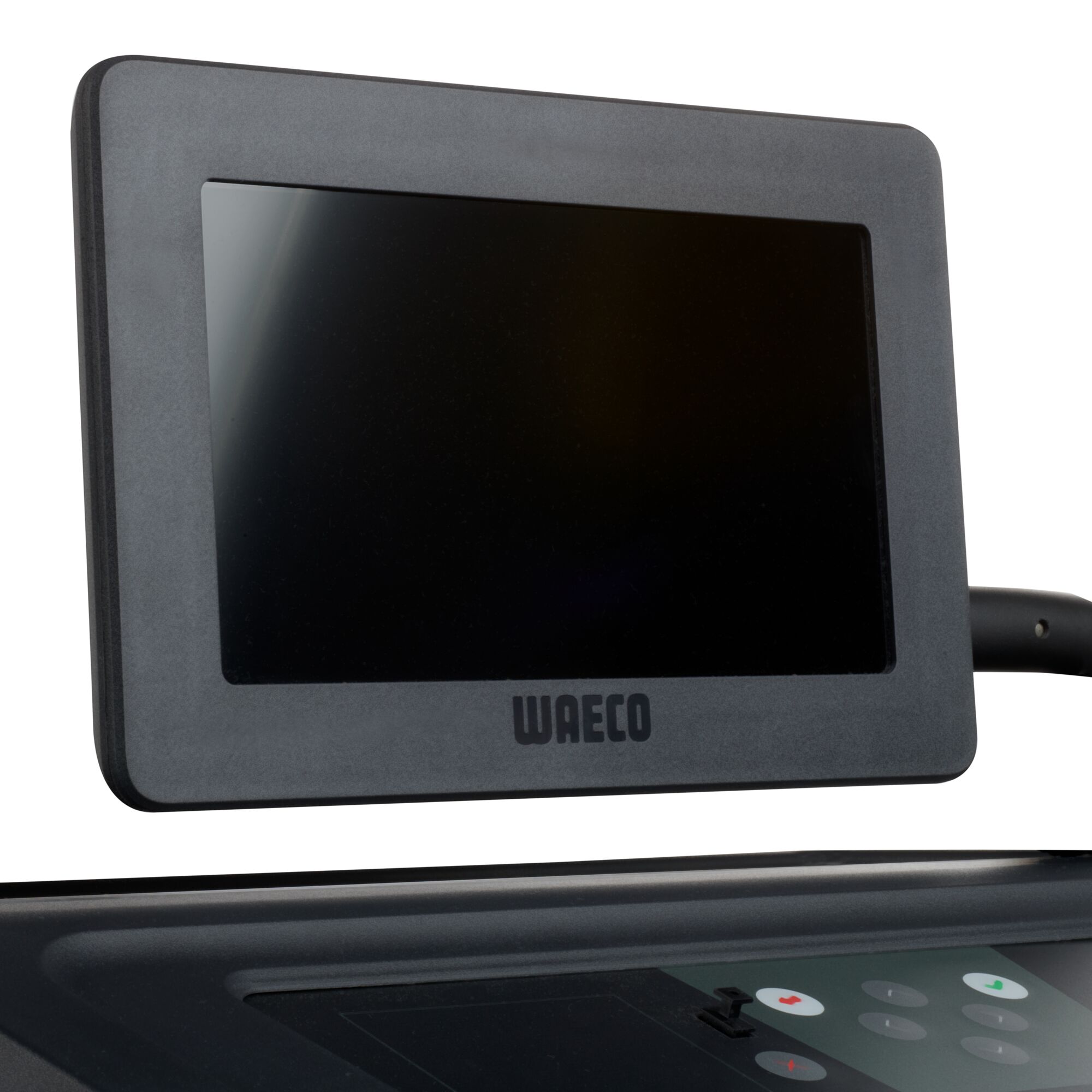

Control PanelHigh/low pressure indicated by Display
Vacuum indicated by Display
Total process control indicated by Display
Option to set the evacuation time Yes
Protocol print-out possible Yes
DimensionsDimensions product depth 560 mm
Dimensions product height 1300 mm
Dimensions product width 650 mm
Net weight 100 kg
LogisticsEAN-13 7392991002419
Dimensions parcel depth 900 mm
Dimensions parcel height 1500 mm
Dimensions parcel width 800 mm
Parcel weight 120 kg

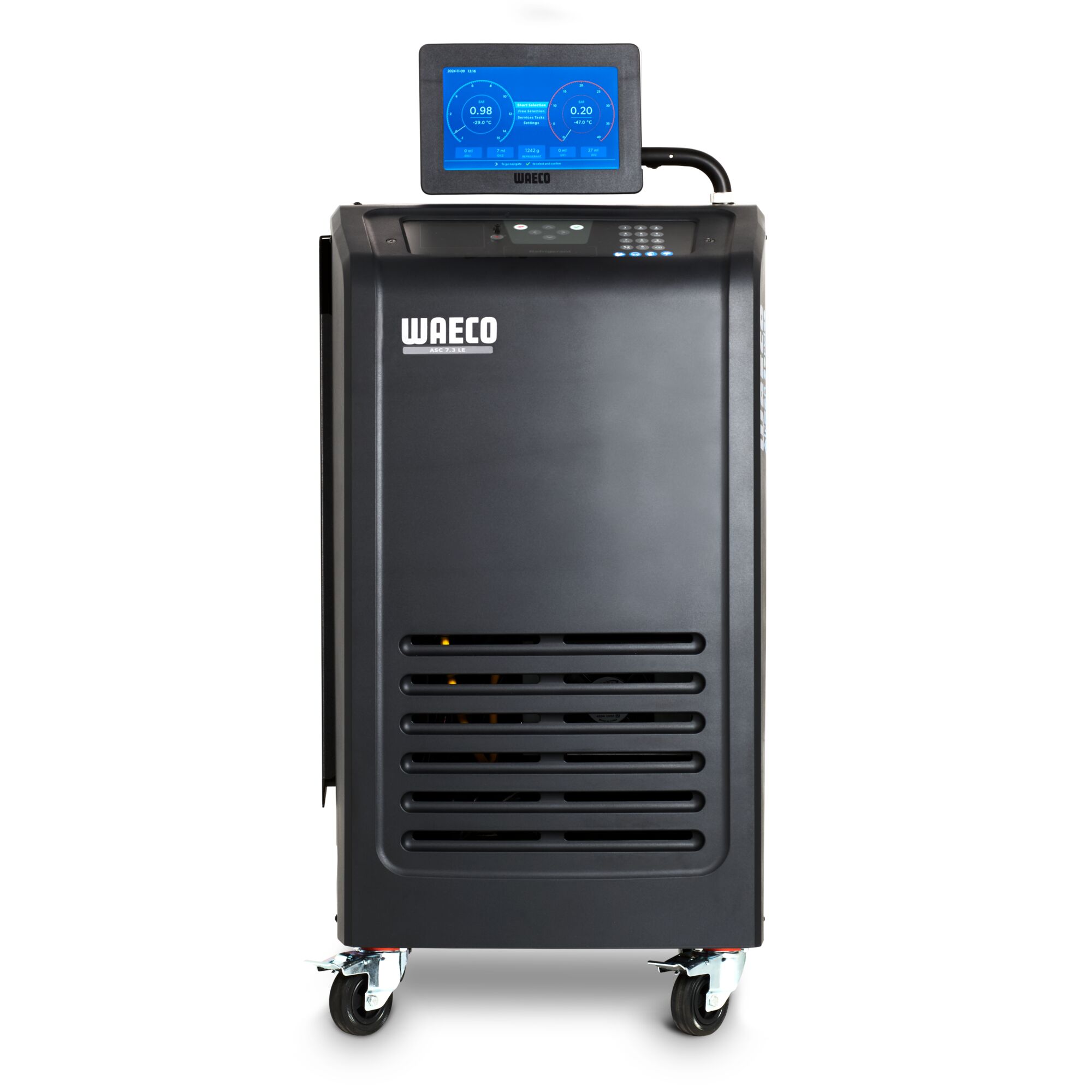

Waeco ASC 7.3 LE

Air conditioning service unit, 16 kg, certified for 4 refrigerants, Low Emission

WAECO Low Emission technology for almost 100% refrigerant recovery and virtually no harmful service emissions. Modern design. Fully automatic service. This new generation air conditioning service unit is certified for use with four refrigerants. It can be equipped for service on R134a, R1234yf, R456A or R513A A/C systems. Simply order the hose kit for the application of your choice.

Blank

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Key Features
  • Fully automatic A/C service – saves time and effort in the workshop
  • Almost 100% refrigerant recovery and virtually 0% service emission thanks to used oil container and patented WAECO Low Emission concept
  • Humidity-free storage and feeding system for fresh oil and UV additive (hose kit sold separately)
  • Great diagnosis tool – reliable leak detection and highly accurate recharging
  • Optional external gas analyser prevents dangerous refrigerant mixtures
  • Maintenance-free refrigerant weighing platform – no calibration required
  • Database with personalised charging amount for 100 different vehicles
  • WiFi-ready – integrated module can be activated during initial start-up
  • USB interface for convenient software update or export of service data
  • Complies with SAE J 2099, 2788 and 2843
Technical data

GeneralSKU number 9103303117
For Refrigerant R456A, R1234yf, R134a, R513A
Input voltage (AC) 220-240 V
Input frequency 50/60 Hz
Recovery / recyclingPurity of recovered refrigerant (SAE J 2099) Yes
Refrigerant recovery rate 30.00 kg/h
Vacuum pump capacity 5 cars/h
Performance of the hermetic compressor 0.32 kW
Dry filter capacity 150.00 kg
Refrigerant recycling rate Close to 100 %
Can be used as diagnosis tool Yes
ChargingRefrigerant Capacity 16.00 kg
ProcessesRefrigerant analysis External / Optional
Recovery/recycling Automatic
Purging of non-condensable gases Automatic / Electronic
Purging of used oil Automatic
Evacuation Automatic
Vacuum check Automatic
Nitrogen leak check No
Injection of leak detection additive Automatic
Injection of oil into the A/C system Automatic
Refrigerant charging Automatic
Control PanelHigh/low pressure indicated by Display
Vacuum indicated by Display
Total process control indicated by Display
Option to set the evacuation time Yes
Protocol print-out possible Yes
DimensionsDimensions product depth 560 mm
Dimensions product height 1350 mm
Dimensions product width 700 mm
Net weight 105 kg
LogisticsEAN-13 7392991002426
Dimensions parcel depth 900 mm
Dimensions parcel height 1500 mm
Dimensions parcel width 800 mm
Parcel weight 120 kg

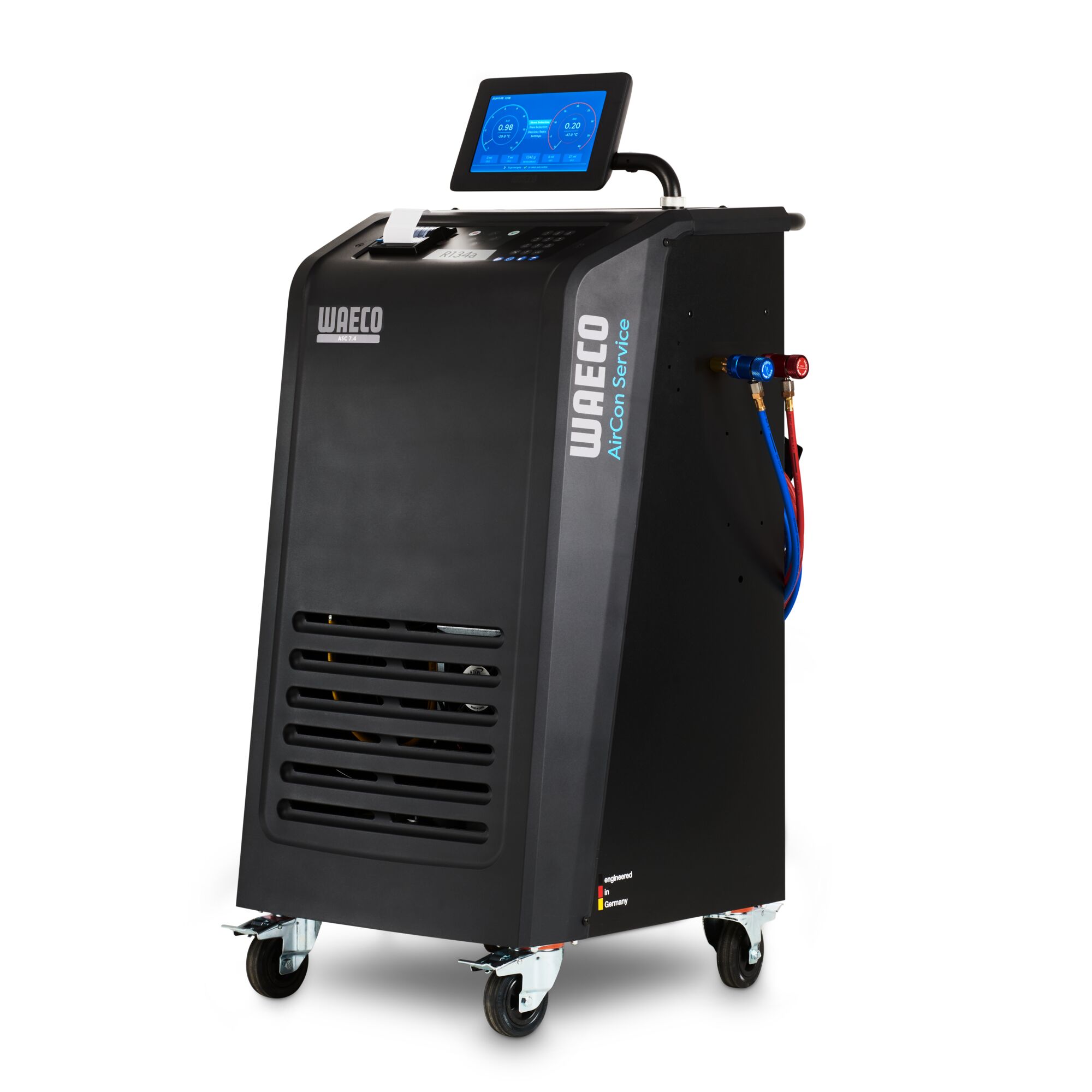

Waeco ASC 7.4

Air conditioning service unit, 28 kg, certified for 4 refrigerants

Modern design in all-black. Fully automatic service processes. Smart 7-series extras for convenient handling. This high-volume, fully automatic A/C service unit is designed for buses, trains, helicopters and custom applications. Thanks to a modular concept, the base unit can be equipped for service on R134a, R1234yf, R456A or R513A A/C systems. Simply order the matching hose kit.

Blank

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Key Features
  • Fully automatic A/C service – saves time in the workshop and prevents costly downtime
  • High-capacity vacuum pump and additional fluid pump – designed for large vehicles
  • Heated charging cylinder for high-speed charging – heat-up also possible during the charging process
  • Optional heat belt for faster recycling saves up to 80% work time during A/C service
  • Heavy-duty design with 8-bearing weighing platform – no calibration needed
  • Humidity-free storage and feeding system for fresh oil and UV additive (hose kit sold separately)
  • WiFi-ready – integrated module can be activated during start-up
  • Approved by Deutsche Bahn, EvoBus, OMNIplus, Valeo
Technical data

General
SKU number 9103303118
For Refrigerant R456A, R1234yf, R134a, R513A
Input voltage (AC) 220-240 V
Input frequency 50/60 Hz
Recovery / recycling
Purity of recovered refrigerant (SAE J 2099) Yes
Refrigerant recovery rate 30.00 kg/h
Vacuum pump capacity 192 l/min
Performance of the hermetic compressor 0.32 kW
Dry filter capacity 150.00 kg
Refrigerant recycling rate Min. 95 %
Can be used as diagnosis tool No
ChargingRefrigerant Capacity 30.00 kg
ProcessesRefrigerant analysis External / Optional
Recovery/recycling Automatic
Purging of non-condensable gases Automatic
Purging of used oil Automatic
Evacuation Automatic
Vacuum check Automatic
Nitrogen leak check No
Injection of leak detection additive Automatic
Injection of oil into the A/C system Automatic
Refrigerant charging Automatic
Control PanelHigh/low pressure indicated by Display
Vacuum indicated by Display
Total process control indicated by Display
Option to set the evacuation time Yes
Protocol print-out possible Yes
DimensionsDimensions product depth 560 mm
Dimensions product height 1350 mm
Dimensions product width 700 mm
Net weight 110 kg
LogisticsEAN-13 7392991002433
Dimensions parcel depth 900 mm
Dimensions parcel height 1500 mm
Dimensions parcel width 800 mm
Parcel weight 130 kg

Waeco ASC 7.4 LE

Air conditioning service unit, 28 kg, certified for 4 refrigerants, Low Emission

WAECO Low Emission technology for almost 100% refrigerant recovery. Modern design. Fully automatic processes. Smart 7-series extras. This high-volume air conditioning service unit is ideal for buses, trains, helicopters and custom applications. Thanks to a modular concept, the base unit can be equipped for service on R134a, R1234yf, R456A or R513A A/C systems. Simply order the matching hose kit.

Blank

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Key Features
  • Fully automatic A/C service – saves time in the workshop and prevents costly downtime
  • High-capacity vacuum pump and additional fluid pump – designed for large vehicles
  • Almost 100% refrigerant recovery with patented WAECO Low Emission technology
  • Heated charging cylinder for high-speed charging – heat-up also possible during the charging process
  • Optional heat belt saves up to 80% of work time during A/C service
  • Heavy-duty design with 8-bearing weighing platform – no calibration needed
  • Humidity-free storage and feeding system for fresh oil and UV additive (hose kit sold separately)
  • WiFi-ready – integrated module can be activated during initial start-up
  • Approved by Deutsche Bahn, EvoBus, OMNIplus, Valeo
Technical data

GeneralSKU number 9103303119
For Refrigerant R456A, R1234yf, R134a, R513A
Input voltage (AC) 220-240 V
Input frequency 50/60 Hz
Recovery / recyclingPurity of recovered refrigerant (SAE J 2099) Yes
Refrigerant recovery rate 30.00 kg/h
Vacuum pump capacity 192 l/min
Performance of the hermetic compressor 0.32 kW
Dry filter capacity 150.00 kg
Refrigerant recycling rate Close to 100 %
Can be used as diagnosis tool Yes
ChargingRefrigerant Capacity 30.00 kg
ProcessesRefrigerant analysis External / Optional
Recovery/recycling Automatic
Purging of non-condensable gases Automatic / Electronic
Purging of used oil Automatic
Evacuation Automatic
Vacuum check Automatic
Nitrogen leak check No
Injection of leak detection additive Automatic
Injection of oil into the A/C system Automatic
Refrigerant charging Automatic b
Control PanelHigh/low pressure indicated by Display
Vacuum indicated by Display
Total process control indicated by Display
Option to set the evacuation time Yes
Protocol print-out possible Yes
DimensionsDimensions product depth 560 mm
Dimensions product height 1350 mm
Dimensions product width 700 mm
Net weight 115 kg
LogisticsEAN-13 7392991002440
Dimensions parcel depth 900 mm
Dimensions parcel height 1500 mm
Dimensions parcel width 800 mm
Parcel weight 130 kg
