R744 CO2 Equipment

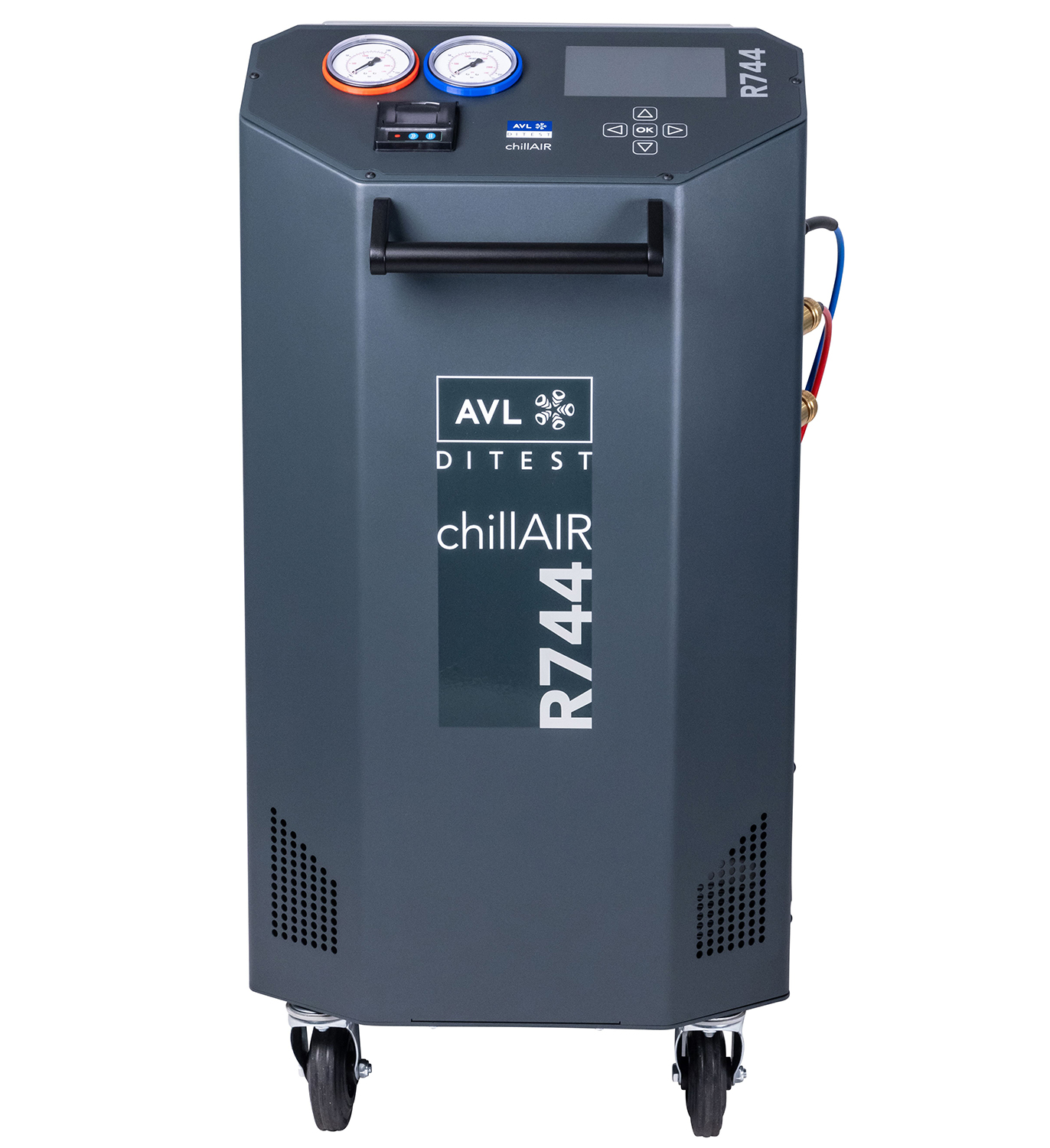

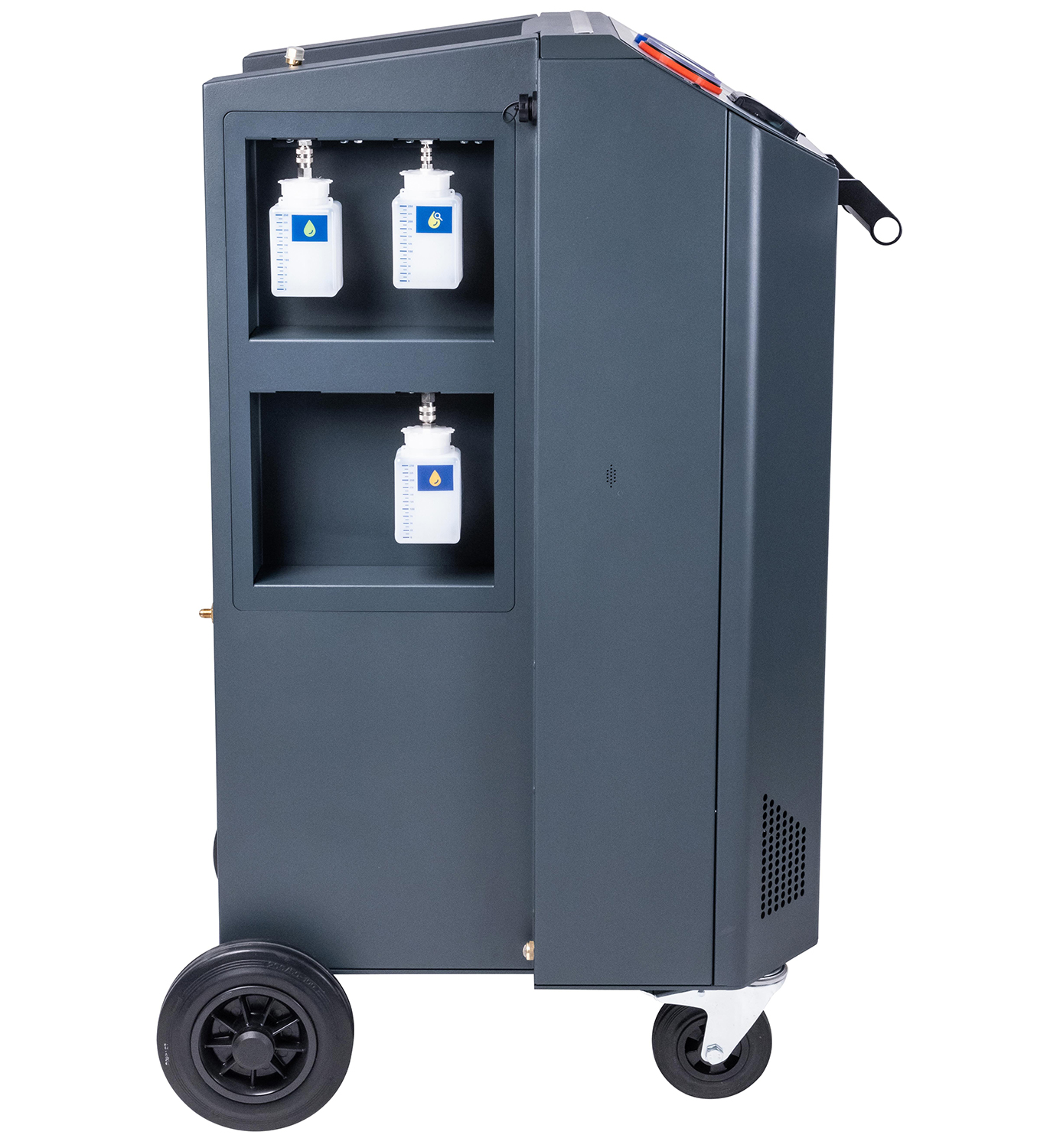

AVL DiTest chillAIR R744 (CO2)

FULLY-AUTOMATIC AIR CONDITIONING SERVICE UNIT FOR CO2 (R744)

CO2 air conditioning systems that run with R744 are undoubtedly superior to those that use conventional refrigerants when it comes to cooling dynamics and environmental compatibility. Countless automotive
manufacturers have recognised its potential, and are increasingly putting their faith in CO2 : the natural, eco-friendly refrigerant of the future.

AVL DiTEST has many years’ experience and in-depth expertise in the field of CO2 air conditioning servicing, and has drawn on this in the development of an improved concept for the new chillAIR series. Safety, environmental protection and economic efficiency were key focuses when developing the device.

Workshops use chillAIR to carry out repairs and service CO2 air conditioning systems, relying on this easy-to-use and fully automatic system.

Blank

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Design
  • Touch display for intuitive operation
  • Additional pressure gauges to take rapid pressure readings
  • Optimised device height ensures ergonomic working
  • Rapid changeover of CO2 cylinders guaranteed (all commercial cylinder types)
Operation
  • Menu-guided processes (safety instructions, plausibility checks) ensure safe working practices
  • Intuitive operation thanks to self-explanatory user interface
  • Straightforward replacement of refrigerant bottle
  • Patented infra-red heating without the need to fit additional heating tape

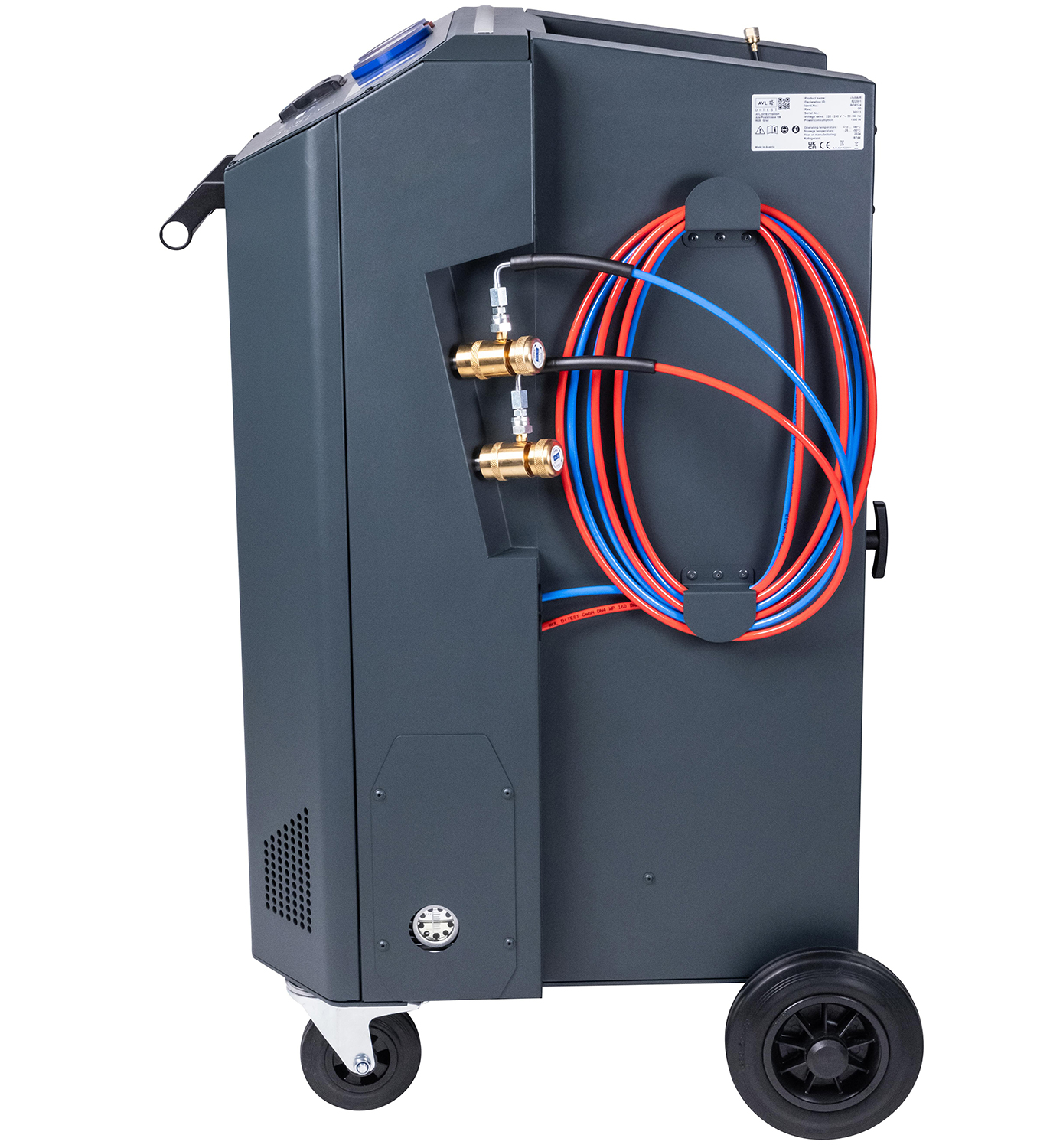

    4 m hoses, max. working pressure up to 160 bar
Sustainability
  • CO2 is a natural and environmentally sustainable refrigerant
  • Environmentally harmful consumables are reduced to a minimum
  • No need to replace dryer units
Overview of functions
  • Fully automatic procedure for quick and easy servicing
  • Manual mode for maintenance tasks on the air conditioning system
  • Function testing of the air conditioning system
  • Automatic documentation of work carried out
  • Pre-set favourites
Technical data

Application
RefrigerantR744
Operation altitudemax. 2000 m
Bottle sizemax. ø 270 mm (10.5 in)
Bottle contentmax. 20 kg
Bottle typeBottle with and without integral riser tube

Supply
Rated voltage220 to 240 VAC 50/60 Hz or 120 VAC 60 Hz

Mechanic
Power consumption1200 W
Dimensions (W × H × D)60 × 110 × 65 cm

Ambient conditions
Operating temperature+10 to +40°C
Storage and transport temperature-25 to +80°C
Humidity10 to 90% non-condensing

Measurement accuracy
Refrigerant weight± 10 g
Oil and UV weight± 2 g
