ACL Climate is a specialist automotive air-conditioning equipment company, based in the heart of Shropshire.

Robinair Equipment

AC1x34-5iP Fully automatic air conditioning service unit for R134a with printer

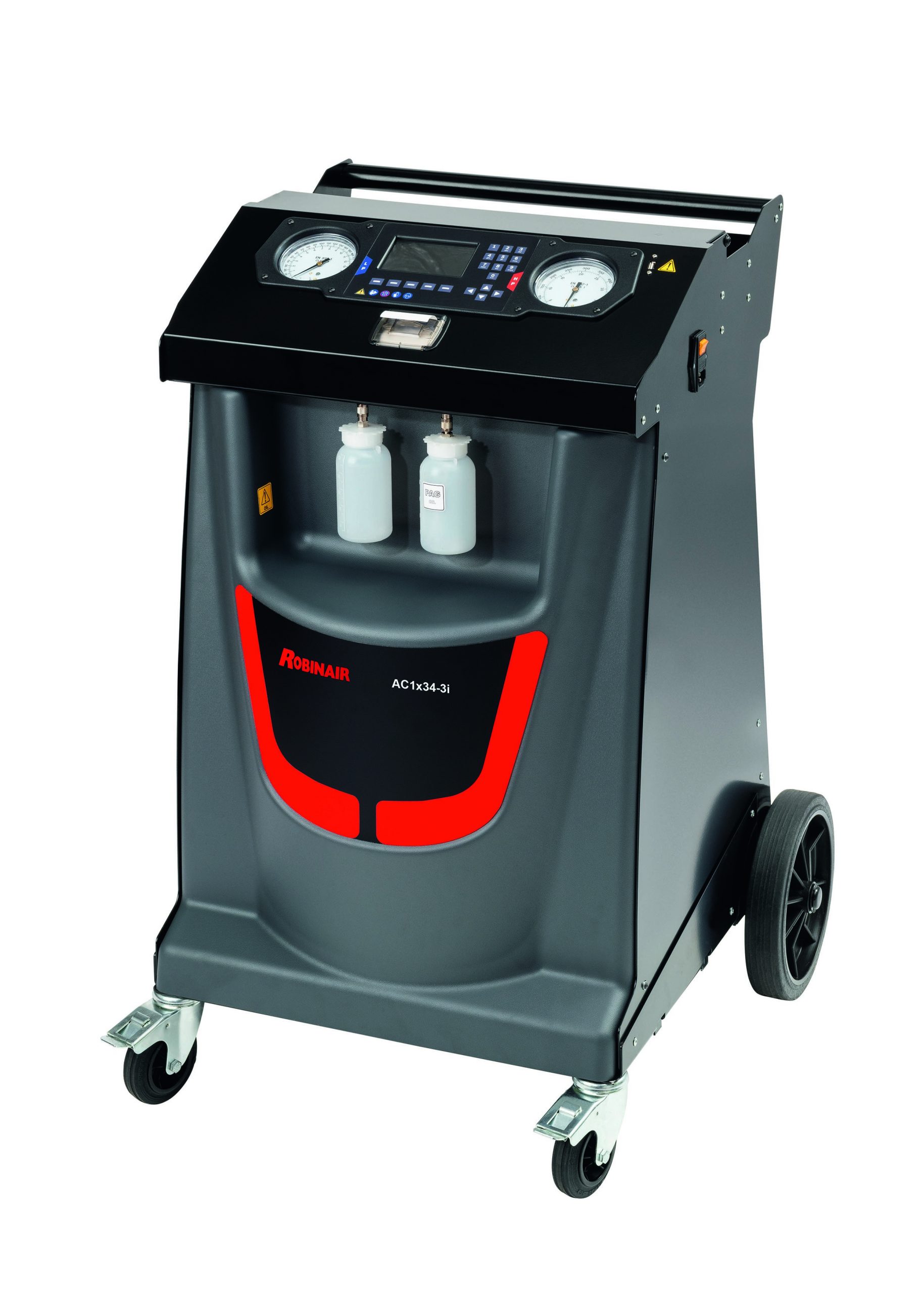

Robinair AC1x34-3iP

AC1x34-3iP Automatic A/C service unit for R134a/R456a

The AC1x34-3i P is the latest addition to the new Robinair Air Conditioning service unit family. It offers the perfect balance of performance and functionality, covering essential service tasks such as refrigerant recovery, recycling and refrigerant recharge. The product design and development focused on the essentials in order to provide the right solution for standard service and maintenance tasks on passenger cars and commercial vehicles, including hybrid and electric vehicles with R134a/R456a based AC systems.

  • Operating mode: fully automatic and single service functions selectable
  • Refrigerant Recovery: automatic
  • Recovery Performance: up to 95%
  • Vacuum Performance measured on A/C system: < 500 micron
  • Oil Injection: automatic (PAG or POE)
  • Refrigerant Charge: ± 15 gram accuracy
  • Integrated Printer
  • R456a refrigerant compatibility as an alternative to R134a
    Blank

    Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

    Key Features
    • Refrigerant: R134a/R456a
    • Operating modes: Fully automatic
    • Refrigerant recovery: Automatic
    • Recovery performance: up to 95 %
    • Refrigerant identifier: Optional (external)
    • Oil recovery: Automatic (timed)
    • Vacuum leak test: Automatic
    • Oil injection: Automatic (PAG or POE)
    • Refrigerant charge: Automatic with electronic scale
    • Flushing function: Optional
    • Air purge system: Electronically controlled
    • HP & LP panel valves: Valveless
    • HP & LP pressure gauge: 100 mm pulse free Class 1
    • Service hoses length & specs: 2.5 m (5 m optional)
    • Compressor: 1/4 HP
    • Vacuum pump: 70 l/min (2.5 CFM)
    • Tank capacity: 10 l
    • Oil tanks: 2 x 250ml
    • Dimension: 99 x 69 x 67 cm
    • Weight: 74 kg
    • Power Supply: 230 50/60 Hz
    • Vehicle database: B50 Yes
    Technical data

    Dimensions99 x 69 x 67 cm
    Weight74 kg
    Power Supply230 50/60 Hz

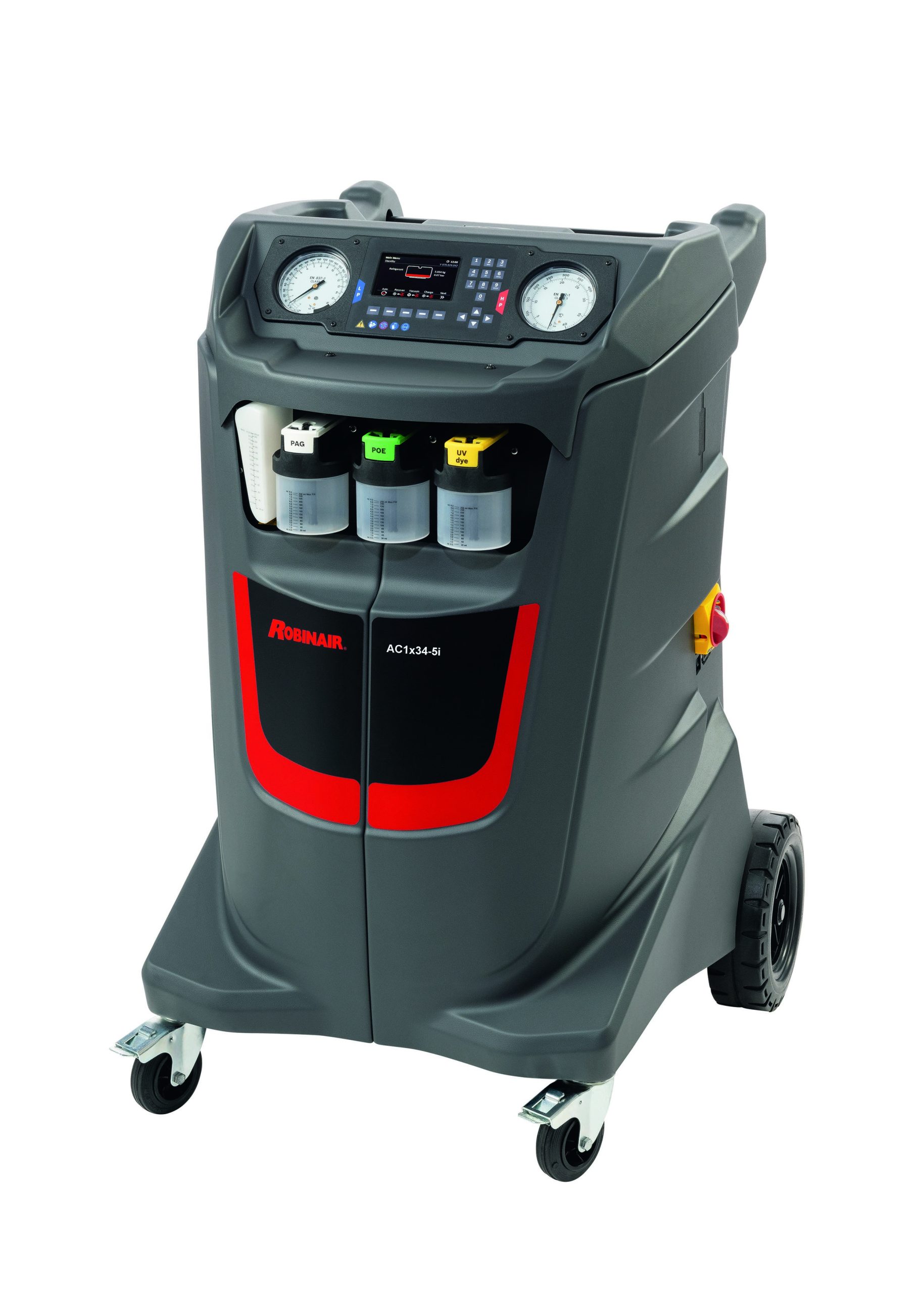

    Robinair AC1x34-5iP

    AC1x34-5iP Fully automatic air conditioning service unit for R134a with printer

    The fully automatic unit for servicing air conditioning units in cars and commercial vehicles with R134a refrigerant. Compatible with hybrid A/C systems meeting European standards, ensuring correct and environmentally friendly handling of refrigerant.

    • 99% recovery rate (Deep Recovery)
    • Dual-stage vacuum pump 170 l/min
    • PAG/POE oil injection
    Blank

    Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

    Key Features
    • Design-for-service for the easiest and most effective ACS internal maintenance
    • Deep Recovery function allows full emptying of the MAC system
    • Innovative oil bottle system suitable for vehicles with combustion engines and hybrid vehicles (PAG/POE)
    • Developed based on customer experience using ACS units, resulting in a product with the perfect balance between robustness and manoeuvrability
    Technical data

    Dimensions750 x 770 x 1050mm (LxWxH)
    Weight112 kg
    Hose Length2.5M
    Refrigerant Type R134a
